X-Ray Baggage Machine

UNI EXPORT

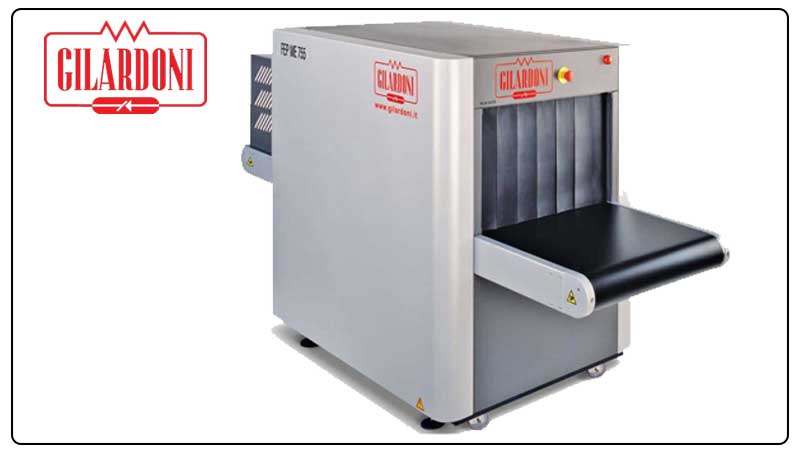

X-Ray Baggage FEP ME 755 UX

Technical Specifications
  • Dimensions: 2630mm (L) x 1065mm (W) x 1462,50mm (H)
  • Weight: 580kg
  • Tunnel size: 756mm (W) x 550mm (H)
  • Conveyor belt height: 735mm
  • Belt speed: 0.2m/s
  • Maximum bag weight: 200kg
  • 1 LCD widescreen monitor
  • Power supply: Monophase 230VAC +/- 10%
  • Frequency: 50Hz +/- 3Hz
  • Power absorption: ≤ 1.5kVA
  • Duty cycle: 100%

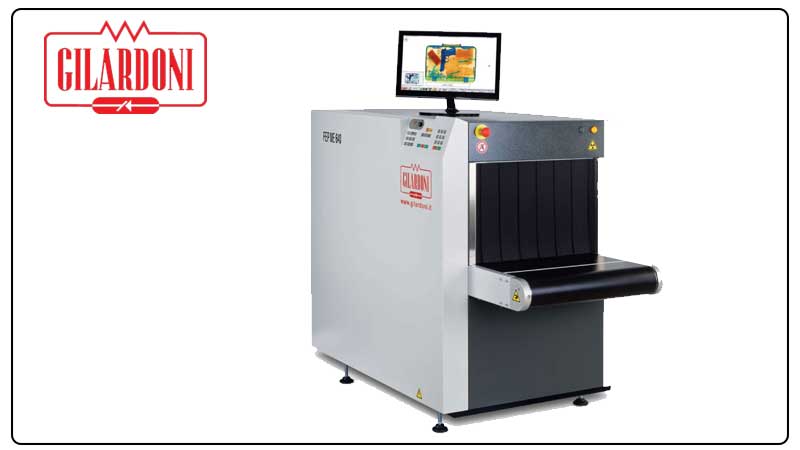

    • X-Ray Baggage FEP ME 640 LP UX

    Technical Specifications
  • Dimensioni: 1800mm (L) x 905mm (W) x 1640mm (H)
  • Dimensioni tunnel: 606mm (W) x 405mm (H)
  • Altezza nastro: 690mm (regolabile)
  • Velocità nastro: 0.2m/s
  • Carico massimo su nastro: 165kg
  • 1 monitor LCD widescreen
  • Alimentazione: monofase 230VAC +/- 10%
  • Frequenza: 50/60Hz +/- 3Hz
  • Potenza assorbita: ≤ 1.5kVA
  • Duty cycle: 100%

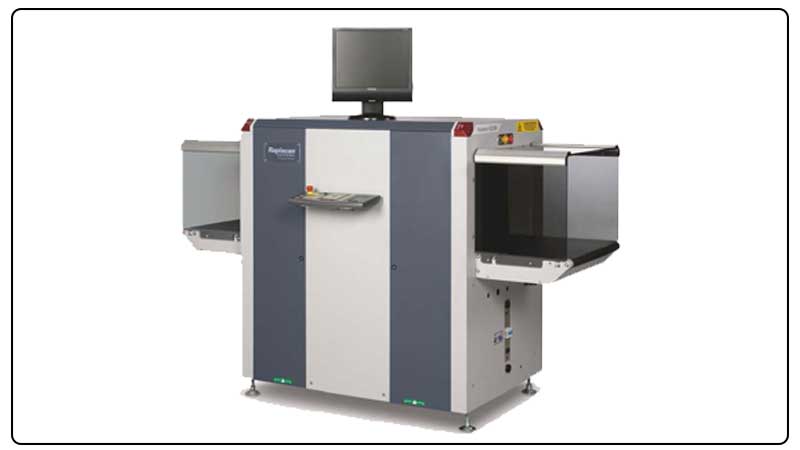

    • SCANNA Rapiscan 620XR Postal Screening UX

    Technical Specifications
  • Rapiscan 620 XR Conveyorised X-ray Machine
  • ۱۷” flat panel viewing monitor
  • Side Mounted Control Panel
  • Safety Tunnel Guards to meet local health and safety regulations
  • Mains Lead
  • Operating Manual
  • ۱۲ month parts exchange warranty
    • Download PDF
